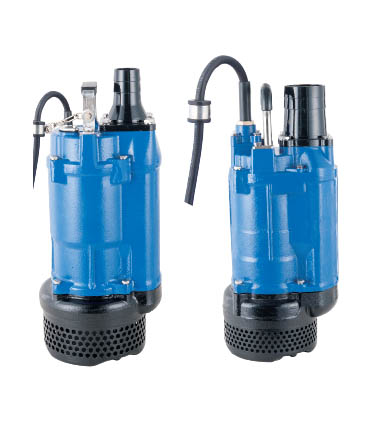

KBZ SUBMERSIBLE PUMP

The body of motor and pump is made of rigid cast iron for long-lasting durability. Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure. Semi-open impeller made of high chrome alloy match with wear plate (ductil

Cloud Zoom small image

Specification

Capacity: up to 160 m3/h
Head: up to 57 meters
Power:1.5kW(2HP) to 15 kW (20HP)
Power supply: three phase 380 V±10%, 50Hz
                                          380 V±10%, 60Hz
Insulation class: F
Protection class: IP68
Cable length: 8m
Water temperature: up to 40℃
Max.water depth: 25m

Application

 Civil engineering
 Mines,quarries,coal ore & slurries
 Sewage treatment plants
 General pumping purposes

Special features on request

Other voltages
The length of cable is optional

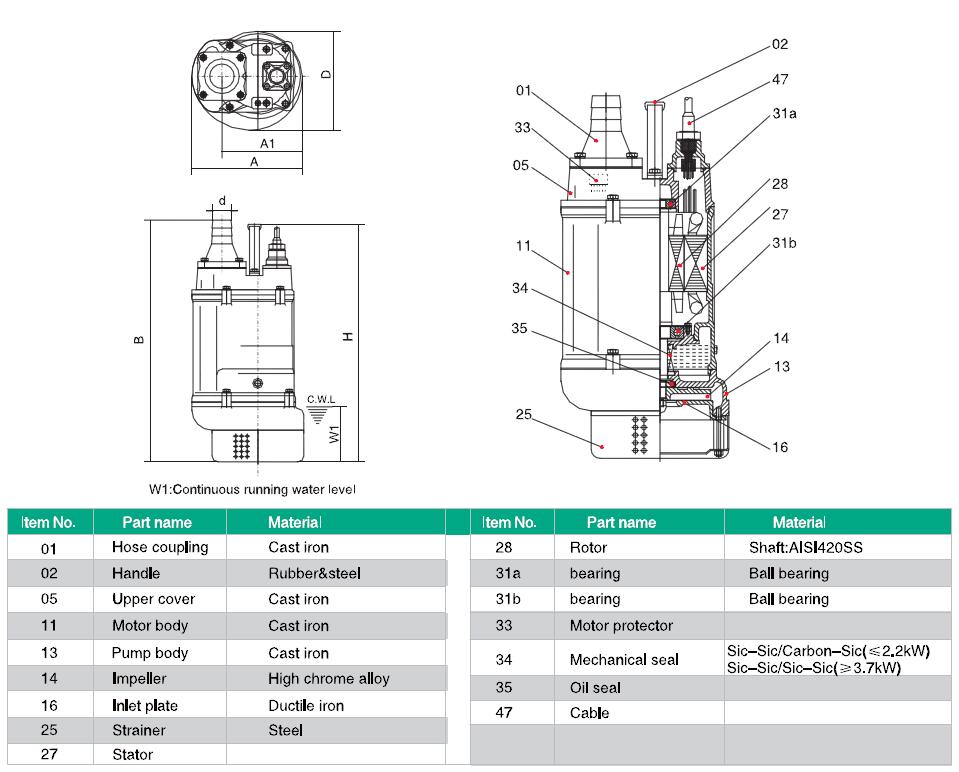

  • Materials of construction

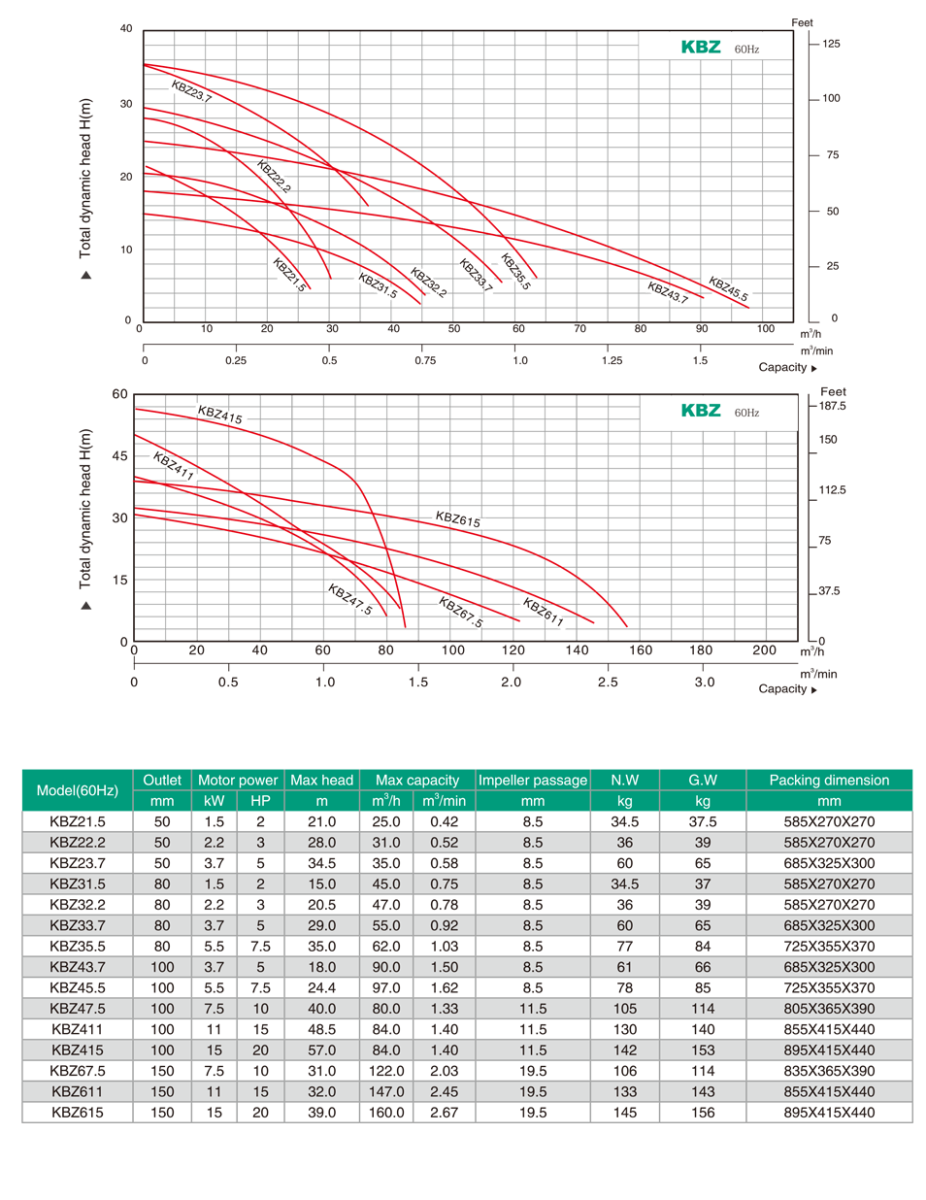

  • Performance curves
